Type:

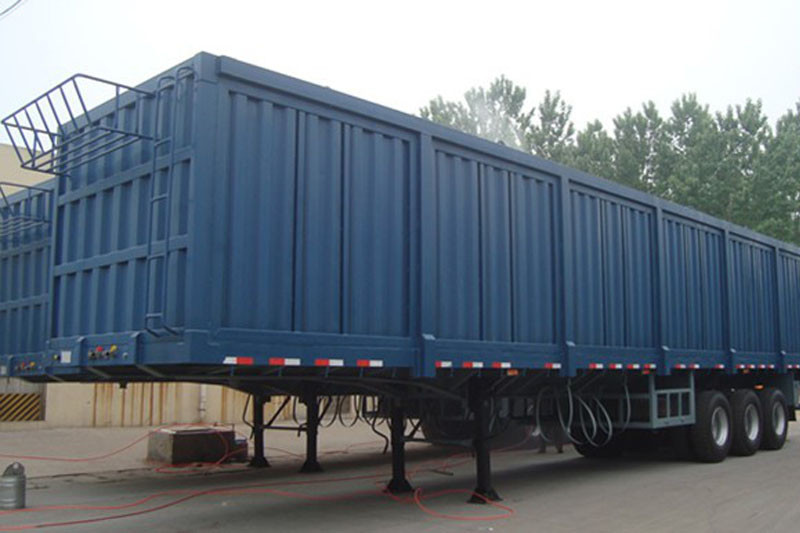

3 axles Box Van Semi Trailer

Dimension:

Length:

12,500mm

Width:

2,500mm

Height:

4,000mm

Capacity:

40,000kg

Frame & Structure:

Main beam:

Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 14mm, Middle web thickness 8mm, Bottom flange thickness 16mm

Side beam:

16# channel steel

Platform:

3mm thick chequer plate with supporting channel

Side wall:

Corrugated plate, height 2000mm

Cross beam:

80*40mm square tube

Kingpin:

Standard 2’ or 3.5’

Twist lock:

Without (Can be optional)

Welding standard:

All welding are to be done by qualified welder per applicable national standard

Painting:

Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um

Running gear:

Suspension:

JMCG mechanical suspension, leaf spring 13mmx90mm, China

Axle:

FUWA 150x150 square beam axle, 3pcs*13 ton capacity, China

Brake system:

Dual line pneumatic brake, SAE hose and connector

Brake chamber:

4 units T30/30 spring brake chambers, 2 units T30 brake chambers

Air tank:

40L, 2 pcs, China

Emergency relay valve:

Wabco relay valve

Tire:

Triangle brand, 12R22.5, 12 pcs. China

Rim:

9.00*22.5 steel disc wheel, 10 holes ISO, 12 pcs. China

Landing gear:

JOST C200 two speed telescopic manual landing gear

Electrical System:

Voltage:

24 Volt

Receptacle:

7 way socket SAE standard, China

Front marker lamp:

White

Side marker lamp:

White & Red

Rear lamp:

Red

Turn signal lamp:

Amber

Reflector:

Per customer requirement

Wiring:

Electric cable protected by PVC conduit on main frame

Accessories:

Mud guard:

Steel mud guard

Spare wheel carriers:

2 pcs

Tool box:

1 pc
