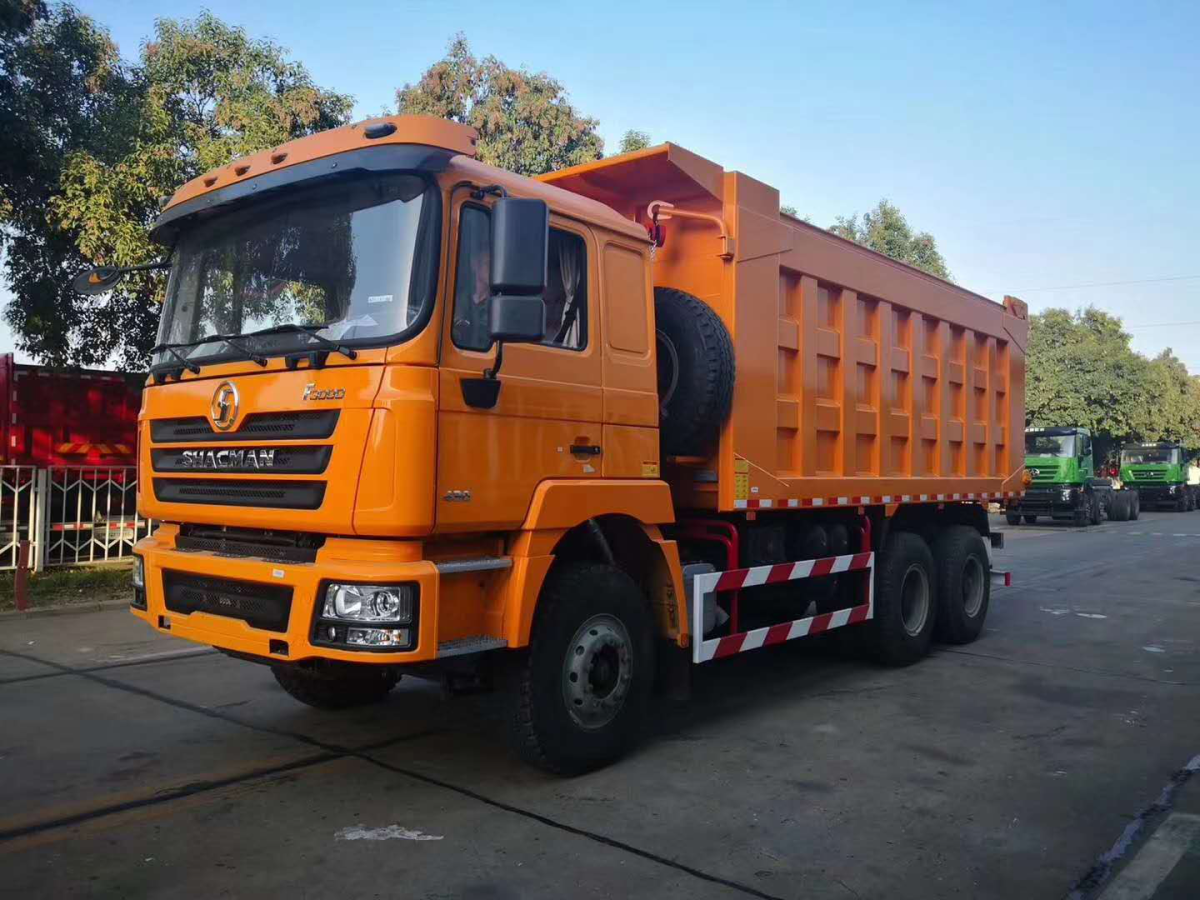

Truck brand

Shacman

Dimension (L*W*H) mm

8850mm*2500mm*3650mm

Cargo body size (L*W*H) mm

5800mm*2300mm*1500mm

Cargo Body Thickness (mm)

Bottom 10mm side 8mm，T700

Lift type of carriage

HYAV 157 Front lifting

Fuel tanker capacity (L)

400L Aluminum alloy

Clutch

Φ430 diaphragm-spring type

Engine model

Fuel type

Fuel

Horse power, max (kw/rpm)

400hp, 294Kw/2100rpm (11.596L)

Emission

Euro II

Model

WP12.400E201, 6cylinder water cooled engine with turbo charge

Transmission

Model

10JSD180 +QH50

Gear ratio

10 forwards &2 reserve shifts

Front axle

9.5T MAN

Rear axle

2*16T MAN, double reduction axle with inter-wheel differential and differential lock

Chassis

Parallel straight ladder structure of “C” type section, 850x300 (8+7)

Steering

ZF8098 technology, integral circulating ball power steering

Brakes

Drum, Dual-circuit compressed air brake, Power spring braking acting on rear wheel, WEVB Auxiliary brake

Wheels and tires

12.00R20 (10+1)

Cabin

l F3000 Middle &length cab, cooling air conditioning

l Electric cab tilting

l Electric shake window machine

l Iron bumper

l Oil bath air filter

l Water tank & oil pan guard gating

l Headlight & rear lamp guard gating

l Center Lock

l Shacman marks with full English logo

Battery

24V, 2x165Ah

Dimensions (mm)

wheelbase

3975+1350mm

Front overhang

2036mm

Rear overhang

1860mm

Overall length

    8850mm

Overall width

2500mm

Overall height

3650mm

Weight (kg)

Total mass

25000kg

Kerb mass

15800kg

Front axle laden mass:

9500kg

Rear axles laden mass

2*16000kg

Performance

max. speed(km/h)

60km/h

Min. Ground clearance

>314

Others

The others are factory standard
