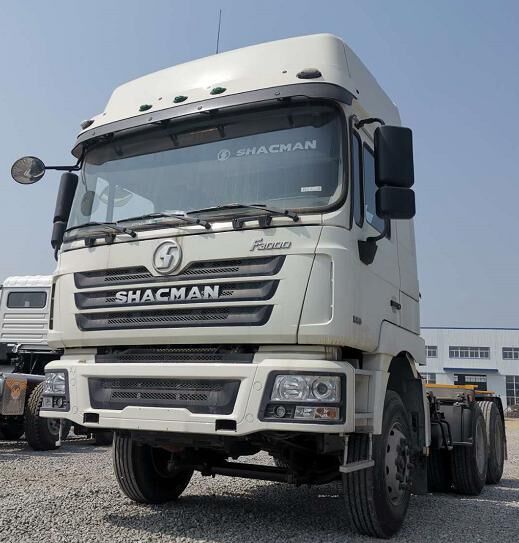

SHACMAN F3000 6×4 Trailer truck head tractor

Driving type    6×4
Weight     Kerb mass (kg)    8000kg
Max weight(kg）    55000kg
Dimensions LxWxH (mm)    6880×2490×3260
Wheel base (mm)    3175+1400
Performance
Max. speed ( km/h)    105
max. grade ability    20（%）
Approach/Departure angle    20/66（°）
Engine    Brand
Model    WP10.380E22
Country of original     China
Engine structure
in-line 6 cylinder , 4 valve engine
 Power (kw/rpm)    280/2200
Max. torque (N.
m/rpm）    1600/1200-1400
Displacement (L)    9.726
Bore x Stroke    125/147（mm/mm）
Emission standard    Euro II
Clutch    Type Single plate, diaphragm spring
Diameter (mm)    φ-430
Action    Mechanical type, hydraulic and pneumatic operation
Transmission    Brand    FAST
Model    12JSD200T-B (With QU70 PTO)
Control type    Manual
Gear shift 12-forward and 2-reverse speeds
ratio    Front:15.53/12.08/9.39/7.33/5.73/4.46/3.48/2.71/2.1/1.64/1.28/1
Rear: 14.86/3.33
Axles Brand    MAN
Front axle7500kg  MAN Tech turning axle
Rear axle
13000kg  MAN Driving axle ,Single reduction driving axle with wheel-inner differential and differential lock
Ratio    4.111
Brakes Type    Drum Brake
Service brake    With dual-circuit compressed air brake
Park brake    Power spring brake acting on rear wheel
others     with engine exhaust brake
Steering    Type Right hand drive，adjustable steering wheel
Integral circuiting ball power steering
Suspension Front& rear few-leaf spring;
Frame    (940-850)x300（ 8）mm
Tire12R22.5（10+1）pcs  Triangle tire
Mixed pattern of front tire
spare tire and rear tire block pattern
Electric system    Battery：165AH×2，24V, maintenance-free battery，Alternator：28V,70A,
Fuel tank    Tank capacity (L)    400L
Material    Aluminum alloy
Cab    Type    SHACMAN F3000 Lengthened flat roof
Cab devices
Speed meter, RPM meter，fuel level gauge, air pressure gauge, engine oil pressure meter，coolant temperature meter，2doors，Electric constant temperature air conditioner,1 sleeping bed, Electric windows lifter, Adjustable air seat with seat belt, Manusl cab flip, Cab air suspension, sun protector, Radio with MP3, Ordinary 90 saddle, Plate mounting plate, metal bumper, hinged upper pedal, split mudguard, hollow bolt structure of oil return port, and adding a long-term coarse filter，Fuel anti theft
