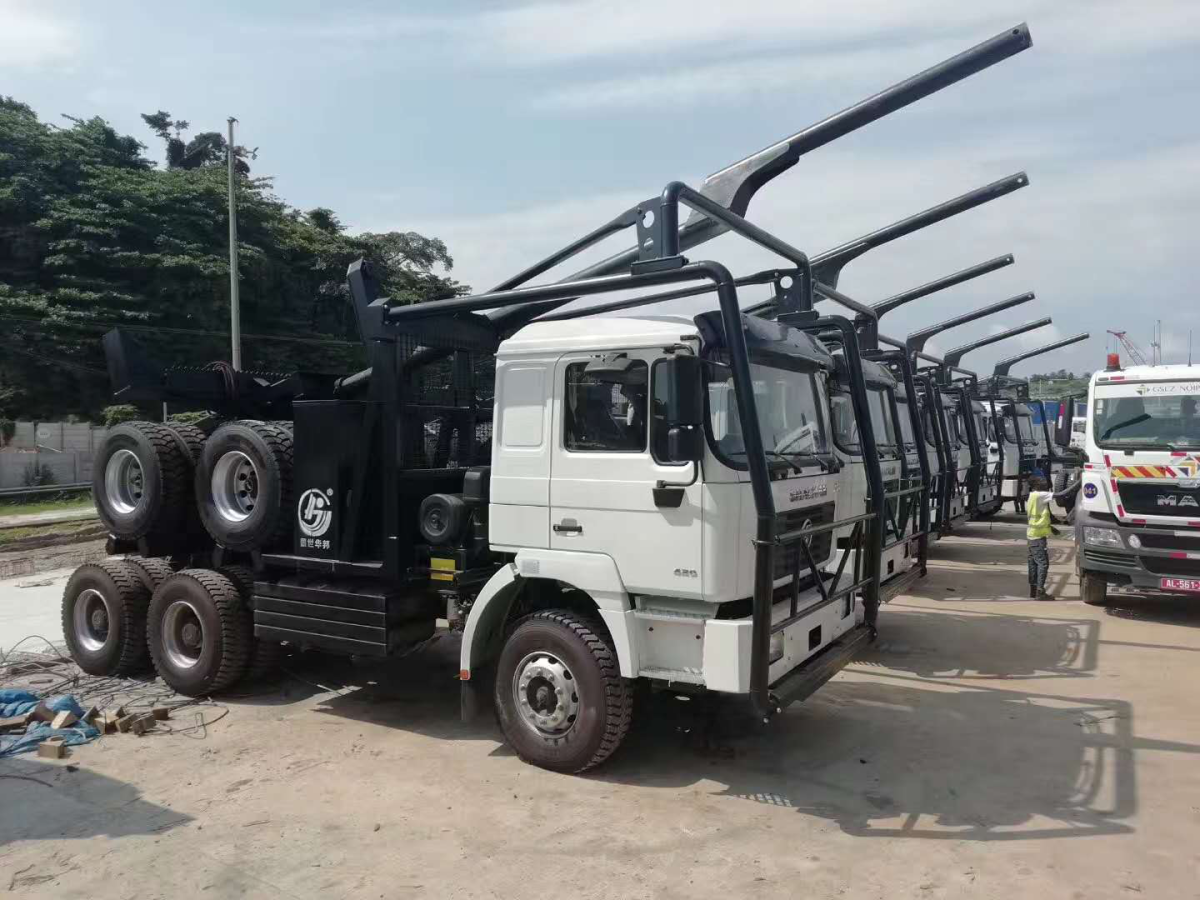

Log wood transport truck head tractor
Log wood transport truck head tractor

Quality first, customer first

    Sinolorry

    Director : Ms Annie

    Tel:+8618678298349

    E-mail:info@sinolorry.com






    • Log wood transport truck head tractor


      陕汽德龙F2000 6X6自卸车底盘原木运输.png

      HOWO 6×6 tractor truck
      Cab:HW76（1-Sleeper）,
      Engine: WD615.47 371hp, EURO 2 ,
      Transmission: HW19710 (10-Forward, 2-Reverse),
      Transfer case：ZQC2000
      Drive axle: ST16 (Double Reduction), final ratio: 4.8
      Front axle: STR drum,
      Steering: ZF hydraulic steering with power assistance,（RHD）
      Tyres: 12.00R20
      Saddle：3.5 inch
      Air condition
      Without ABS
      Gun size: 8750*270*12mm (retractable)
      The inner width of the gantry is 2800, one column of the gantry (connected by pins at the lower part, movable detachable), thickened design, the front and rear gantry are turntable, and the gantry beam is serrated.
      Fuhua 16 ton axle, Fuhua single-point suspension, 8 12.00R20 steel wire tires.
      The thickness of the front baffle and the working platform steel plate is 8mm, and the height of the front baffle steel plate is about 1500mm (not higher than the rear window of the cab).
      Reinforced barrel connecting hook
      optional

      Shacman  F2000 SX3255DT385 Driving type6×6
      Vehicle kerb mass (kg) 15400
      GVW(kg) 25000/39500
      EngineWP12.420E332
      Displacement(L)11.596
      Horsepower(hp) 420
      Fuel tank capacity (L)400L aluminum tank  400L
      Tyre13.00R22.5
      Clutch φ430diaphragm spring
      Gearbox Transmission 12JSD200T, 12 forward speeds, 2 reverse speeds.
      Max. torque (N.m) 2000
      Front axle MAN 9T front driving axle
      Drive axle  MAN 16T×2 double reduction driving axle, ratio 5.92
      Steering  ZF technology（Left-hand drive）
      Cab  Excavation beam before casting / /intake air /  square muffler /Reinforced driving shaft / desert air filter / add a diesel strainer / domestic steering machine / strengthen leaf spring / four riding bolt / /F3000 cooling system / frame support plate higher than the beam 180mm / military decoupling plus eight beam / reserved full Trailer electrical circuit interface at the rear end of the frame / cab to increase the trailer independent brake lever / no air conditioning /32T jack
