Type

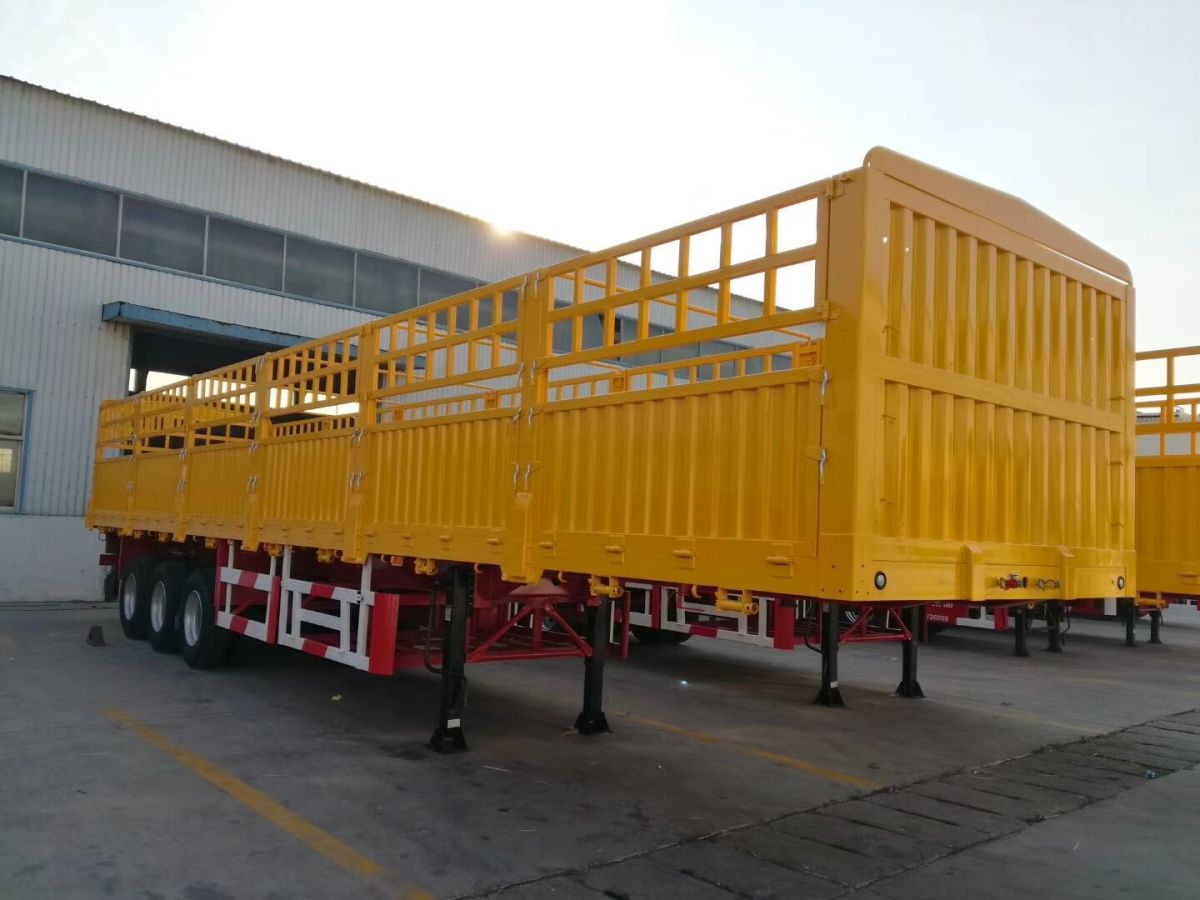

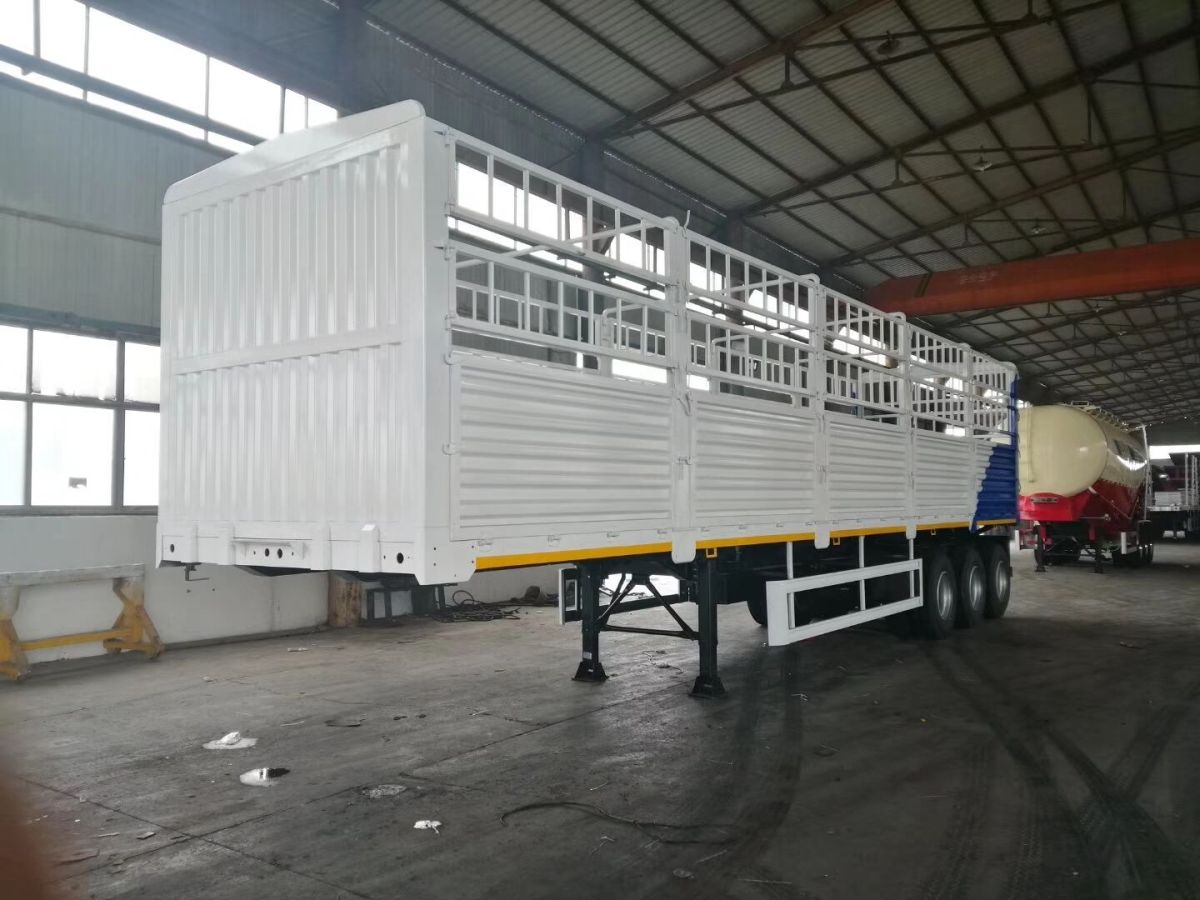

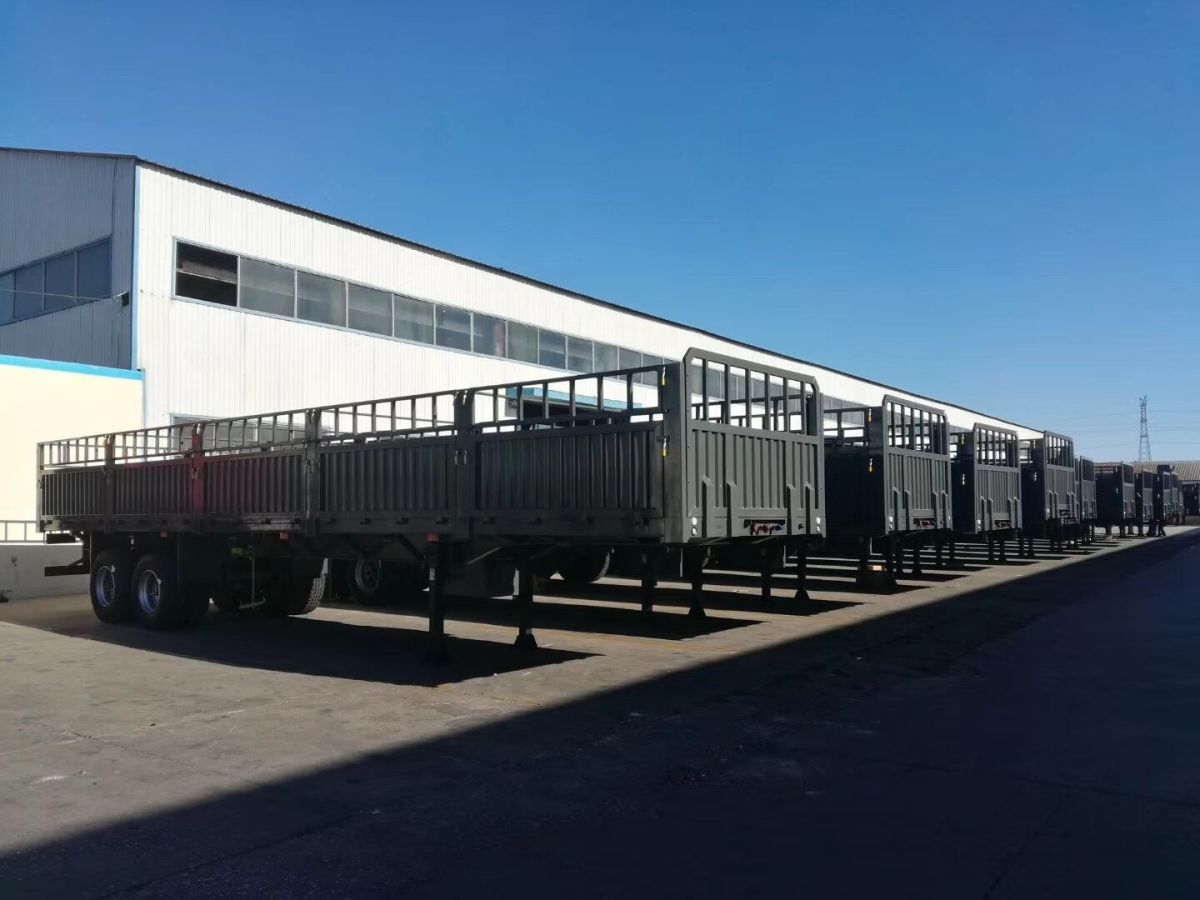

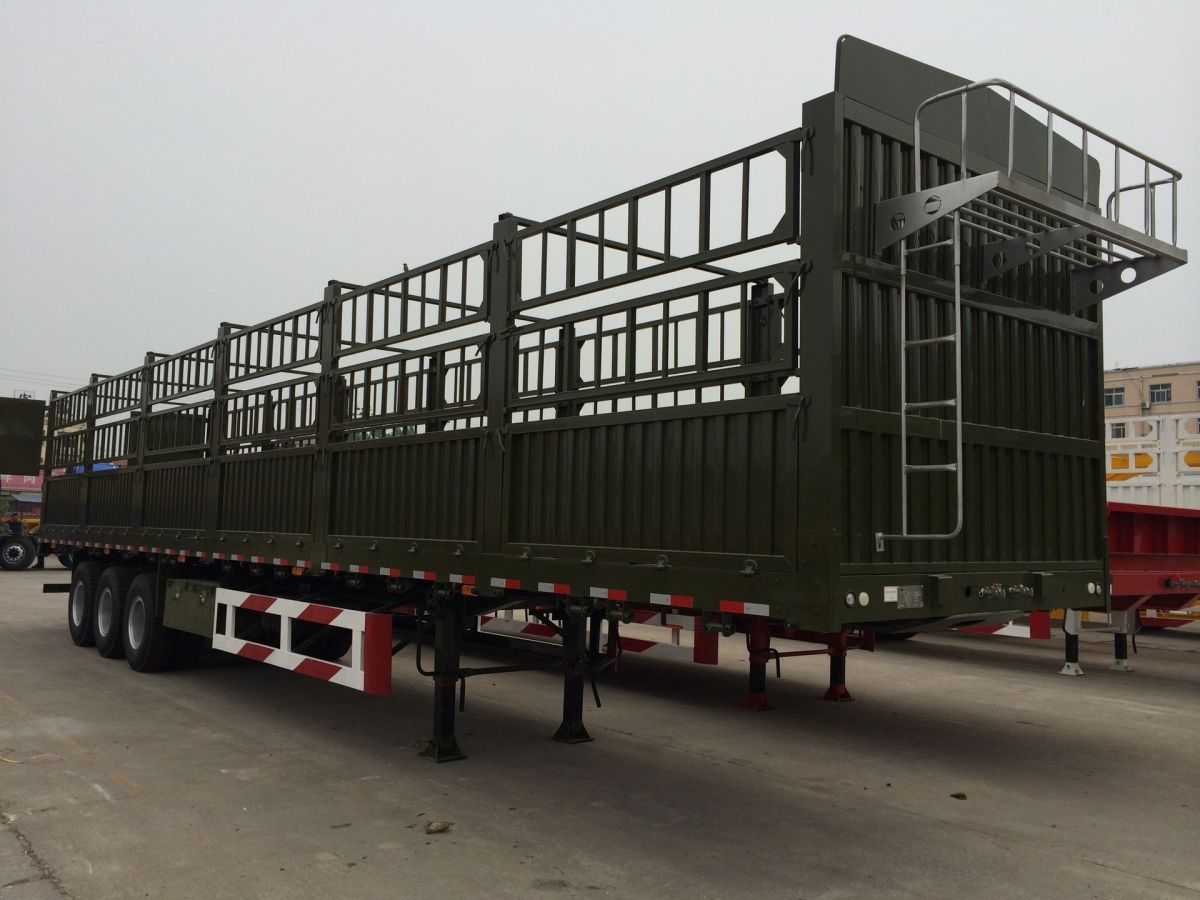

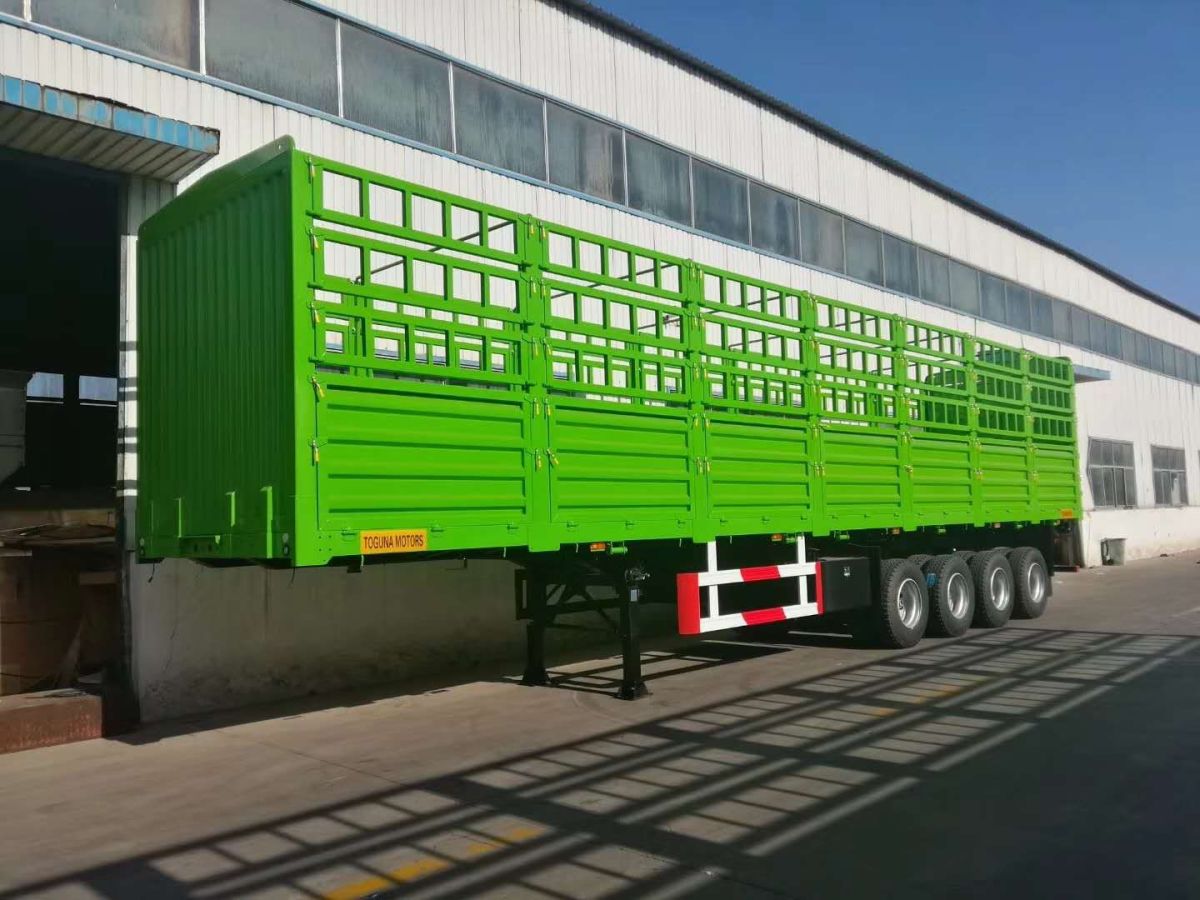

 3 Axles Fence Semi Trailer

Overall dimension

12,400*2,500*3,690mm

Side wall height

700mm

Fence

 Two layer,Overall Height 1100mm.1100mm

Front Wall Height

2150mm

Main beam

Q345 Steel

Beam height: 500mm

Upper plate : 12mm

Double Middle plate : 6mm

Down plate : 16mm

Side beam

16# Channel Steel

Cross beam

W type

Platform Thickness

3mm

King pin

Standard 2’ exchange

Land gear

 JOST

Axle

FUWA brand, 3*13T

Suspension

Normal Suspension

Thicken leaf spring

10/10/10

Tire

 Double Coin , 11.00R20-18PR Tire, 12+2spare pcs

Rim

 8.0-20, 14 pcs

Brake Chamber

 30/30 type on each axle ,Wabco brake valve

Spare wheel carrier

2 pcs

Tool box

1 pcs

Water tank

1pcs 400L

Electrical System

Chinese standard 24V lighting system

Side Marker Lamp

LED Lamp

Marking and Colour

Army green
