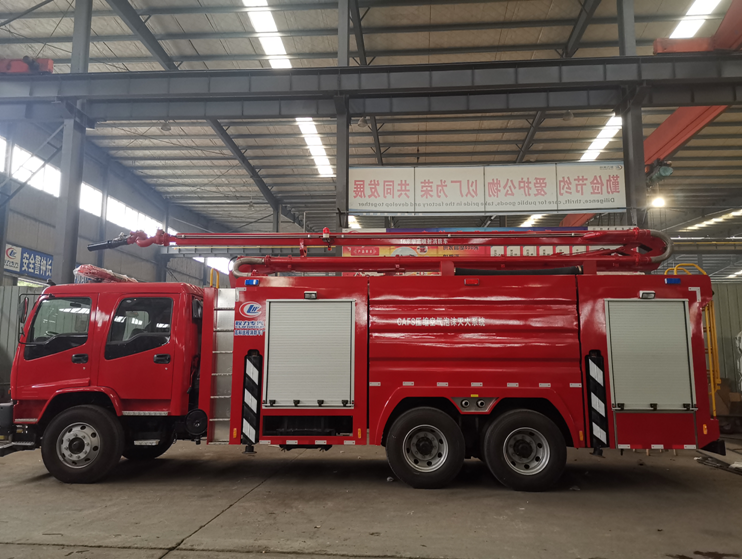

Elevating jet fire truck

Outline size 9850*2500*3795mm

Maximum total mass 25000kg

Carrying liquid volume 3000kg water, 800kg for type A foaming liquid, 1000kg for type B foaming liquid

Maximum speed 90km/h

Fire pump rated flow 40L/s 1.0MPa

Fire monitor rated flow 40L/s 1.0MPa

Fire monitor range water≥60m, foam≥45m

Specific power 115/18=9.8

Approach angle/departure angle 15°/17°
