Parameters of Chassis

Overview of vehicle

Model

CLW5180ZYSE

Manufacturer

CLW automobile group CO., LTD

Year of manufacture

New, unused( not more than 400 km on the odometer), of the most recent model, and incorporating all recent improvements in design and materials

Certification

ISO9001 CCC,SGS

Usage

ENVIROMENT CLEANING

Overall size

mm

9000*2500*3150

GVW

kg

18000

Curb weight

kg

8000

Approach/departure angle

 °

17/15

F/R suspension

1280/3120

Spring leaf number

8/10+8

Cab type

Cab-over-engine, with high upper part, electronically controlled windows, power steering, automatically air-cut brake

Coating

Anti-corrosive paint coating treatment

Colour

The vehicle is treated with anti-corrosive primer, the colour can be adjusted to the purchaser’s requirements and bear the purchaser’s logo on both sides

Allowance passengers in cab

3

Cab automatic air-conditioning system

Air-conditioner and heater

Steering drive

With a hydraulic booster

Parameters of Chassis

Driving Type

Left hand drive

Number of axles

2

Wheel formula

4×2

Axle load

kg

5000/13000

Wheelbase

mm

5100

F/R track base

mm

1876/1820

Number of tyre

6 tires with 2 spare

Tire specification

10.00R20

Clutch

Diaphragm, single disk, hydraulic, with a pneumatic booster

Parameters of Engine

Engine model

YUCHAI Power

Engine

Diesel, turbo-charged

Fuel type

Diesel

Emission standard

EURO 3

Type

Mechanical, 9-step

Transmission

8 speed forwarder with 1 reverse

Number of cylinder

6

Cylinder arrangement

Direct-line

Max output power

177kw(240hp)

Max torque

N.m

900

Rated rotation speed

rpm

2300

Displacement

ml

7225

Fuel consumption

7.2 L/100 KM

Fuel capacity

liter

240  liter

Upper frame structure

Super structure capacity

m³

16

Garbage box size

mm

5700*2400*1700

Material of dustbin

Carbon steel Q235

container thickness

Side 5 mm, bottom 6 mm

Flip mechanism

Rear turn over plate

The hydraulic oil cylinder

With 9 sets hydraulic cylinders including lifting ,scratch,push,turn over,slide .

Balancing valve

Two-way balance valve

Model/brand of hydraulic pump

Changyuan brand

Oil pressure

mpa

18

hydraulic oil tank volume

Liters

110

Control system

Electric control system, Siemens, made in China

Garbage feeding cycle time

s

20-28

Garbage unloading cycle time

s

15-20

Garbage compression ratio

1:0.75

The compression power

Through the engine - PTO - gear pump - oil filter - multi-way valve - cylinder - compression work

Emergency braking

Emergency stop button

Operation in the ambient temperature range

From -30℃ to 50℃

Body(hull)

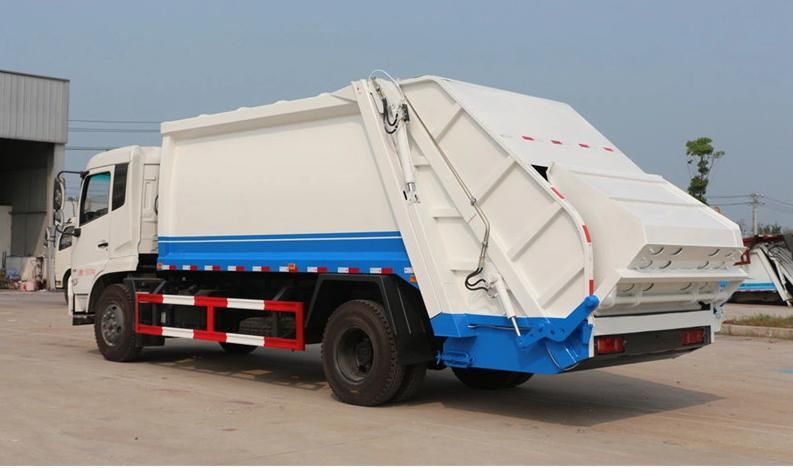

The waste collection truck with a loading compartment for Chinese standard, waste collection containers is designed for the collection and transportation of fraction of municipal waste and recyclables, including biological waste.

Operation can be performed in plain and mountain terrains.

Unloading can be performed in landfills and transfer stations.

Anti-corrosion protection

The entire body of the vehicle and chassis is treated with a certified anti-corrosion protection system.

Painting and logo

The vehicle is treated with anti-corrosive primer,the colour can be adjusted to the purchaser’s requirements and bear the purchaser’s logo on both sides.

Waste loading type

With a rear manipulator

Manipulator type

High quality hydraulic can ensure whole working process is reliable and very quick ,generally speaking one time whole collecting garbage circle time is 20-25 seconds

Manipulator operation

Two side with PLC operation system

Manipulator loading capacity

700kg

Lift

Universal lift tipper for containers with a capacity is 1.1 cubic meter

Flood light for the working area

3 side lamps ,2 clearance lamps ,1 big led night lamp

Weight of the loaded waste

10000kg

Hydraulic drive operation

Manual

Location of the unloading outlet

At the rear end

Waste compaction ratio

High degree of waste compaction allowing to unload from 1:0.75 containers into the superstructure depending on its capacity and the initial of municipal solid waste

Compression unit operation

With automatic and manual modes

Camera and monitor

With 4 camera next to the manipulator and 1 monitor in the cabin

Spare tools and accessories

Spare wheel

With 2 set

1 standard tool kit

Tools and accessories is supplied in a tool box and delivered together with the waste collection truck for on-site repairs.

All tools and accessories are new, unused and adequately marked for identification purposes when in use.
