3 axle flatbed container semitrailer

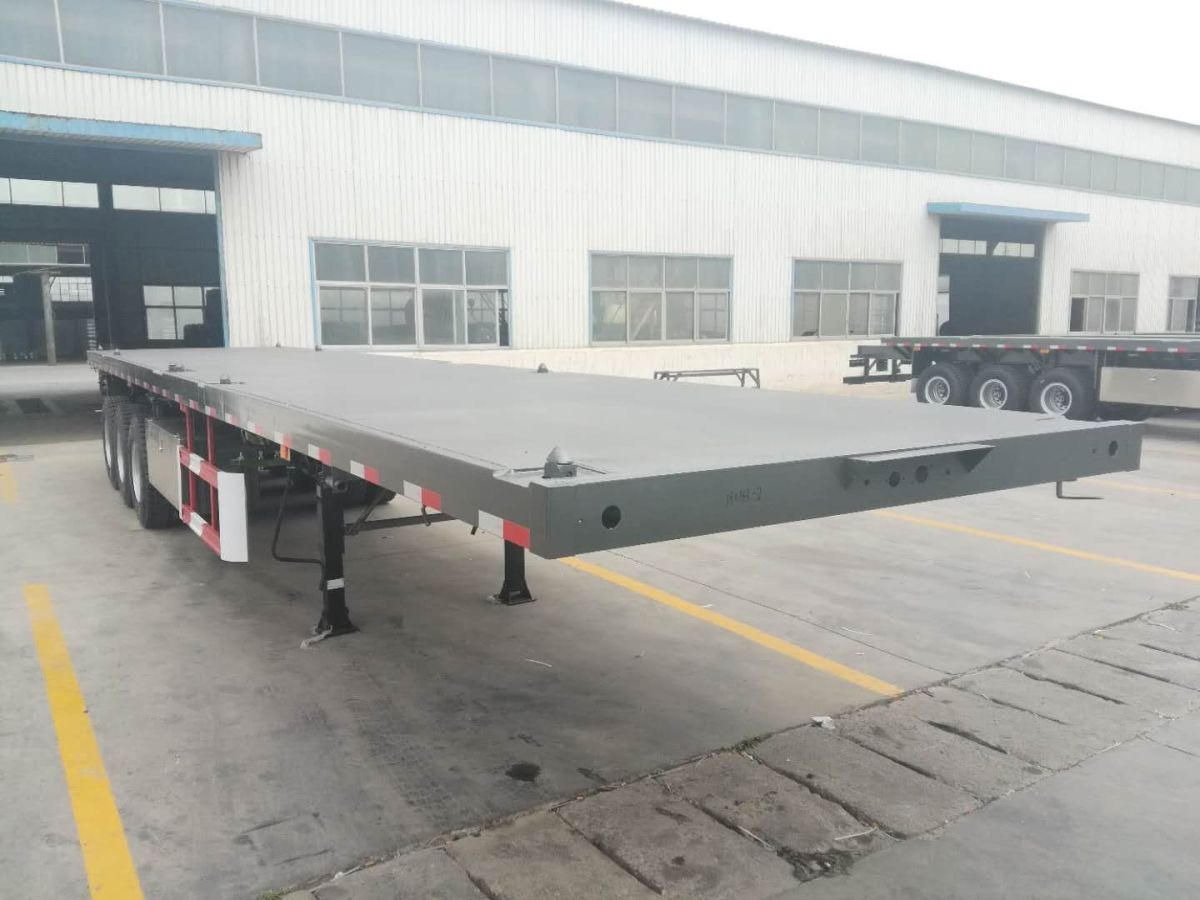

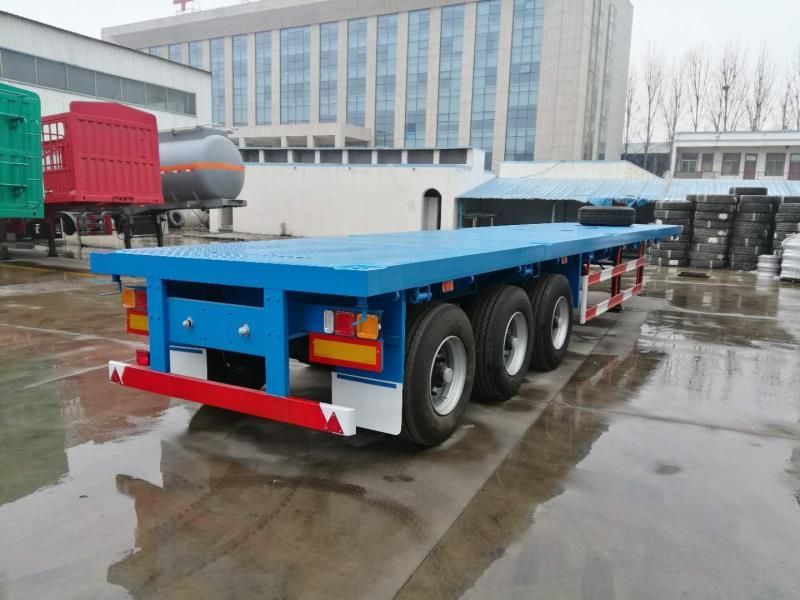

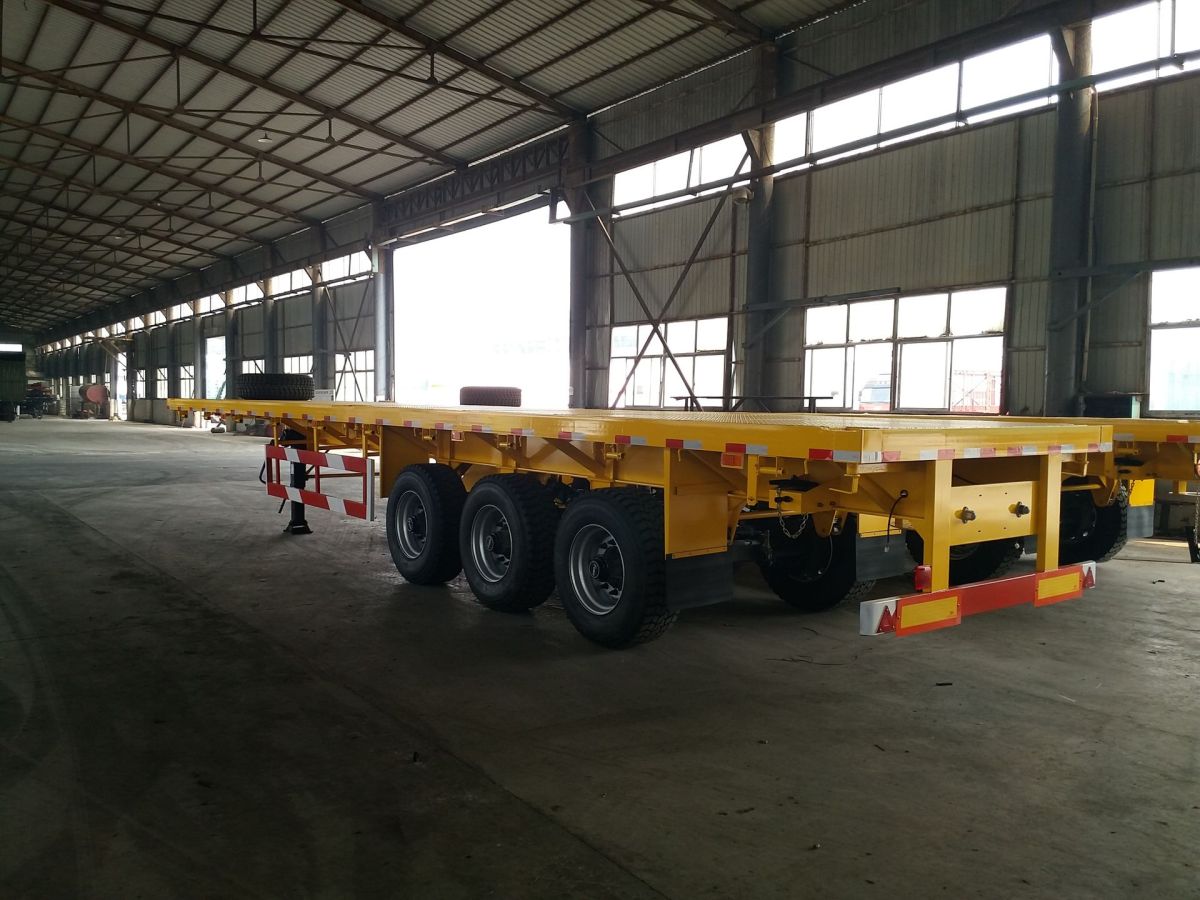

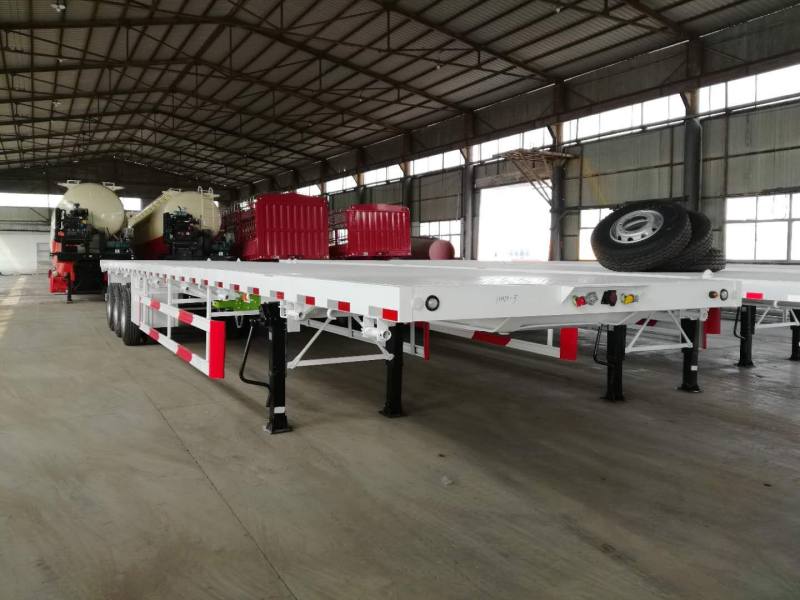

3 Axle Flatbed Container Semi-trailer NEW

Loading capacity 40-50T

Size :12500x2500x1500mm

Chassis (I beam)

Top flange plate Q345B 14mm

Bottom flange plate Q345B 16mm

Middle flange plate Q345B 8mm

Height :500mm

Side beam height U steel 16#

Floor : Material Carbon steel Q235

Thickness : 3mm Checkered plate

Twist lock:12pcs for 1X20ft,2X20ft,1X40ft

Running mechanism:

Axle :Factory standard 13t *3pcs

Rim :9.0-22.5,12pcs

Tire :Triangle 12R22.5, 12pcs

Suspension Mechanical suspension

Spring leaf Leaf width 90mm

Leaf thickness 13mm

Layer/set 10 Layer

King pin Bolts type 3.5 inch

Brake system Air tank 40L air tanks

Brake chamber 4 double spring brake chamber and 2 single brake chamber

ABS Without

Landing gear: Standard 28t

Accessories

Spare tire carrier 2sets

Light LED light

Voltage 24v

Receptacle 7 ways(7wire harness)and quick change type
