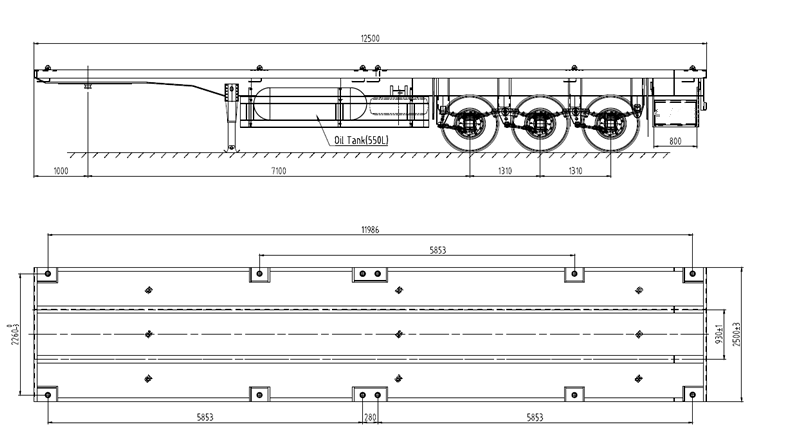

Overall Dimension

12340mm*2490mm*1600mm

Running Gear

Suspension

Tri-axle 11-pcs leaf spring suspension with equalizer beam

Tires

11.00R20,11R22.5,12.00R20,12R22.5,12units (spare tire can optional assembly)

Axles

FUWA，BPW ， load capacity can optional

Brakes

Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake

Under Frame

Main Beam

I shape, Mild Alloy （16Mn） by Automatic submerged arc welding.

Cross Beam

Mild Alloy Q235

King Pin

Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled

Landing Gear

Single side operation or double side operation, Static capacity 30Ton

Twist Locks

12 lock positions with 8 twist locks

Flatbed Floor

Checkered sheet, thickness 2.5mm

Toolbox

1 tool box, length 1.5m

Electrical & Paint

Lights & Reflectors

Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light

Wiring

24V, 6 lines

Air/Elec. Connector

ISO standard air connector, 24V 7 pin plug socket

Paint

Sand blasting before painting, color upon request
