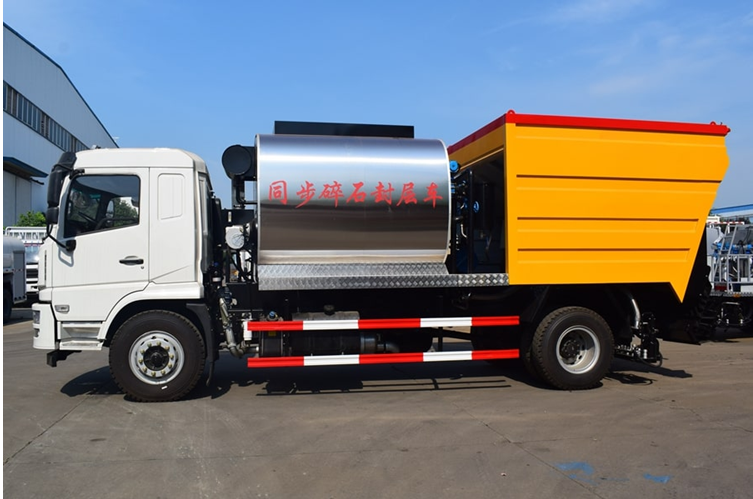

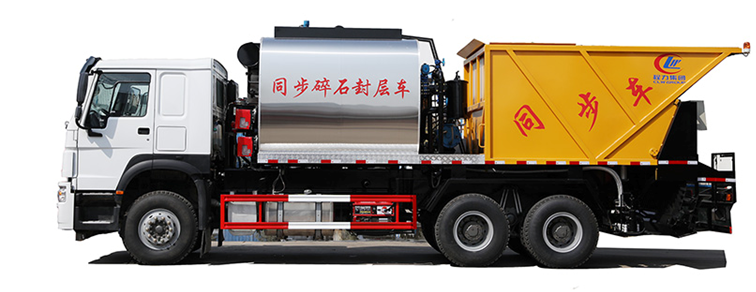

SINO TRUCK Gravel Synchronous Sealing Truck 6x4

1.Asphalt Tank : 8000 Liters  Stone Tank :12000L

2.Asphalt Pump : QGB950( 950 L/Min)

3.Hydraulic System :GPC4-50-20-16 Triple Gear Pump , automatic reversing valve and overflow valve, asphalt pump hydraulic drive motor model 05-130-bd31; efrd-g03-160-5-31 (Taiwan) proportional valve

4.Control mode: Cab touch screen computer intelligent control, control system (German STW module), 32 asphalt intelligent nozzles (one control one), 36 stone chip material doors;

5.The maximum spraying width is 4m, the asphalt spraying amount is 0.25-4.0 L / ㎡, and the stone chip spraying amount is adjustable

6.Heating mode: heat transfer oil automatic heating + double burner G20 (Italian imported riyalu).

7. Gasoline engine: honda 5.5kW or optional hydraulic motor drive

8. Spraying medium: emulsified asphalt, hot asphalt, modified asphalt, etc

9. Chassis : SINO TRUCK , HOWO , 340HP , EURO II , LEFT HAND DRIVE , 6X4 10 Wheels

4x2 optional:
